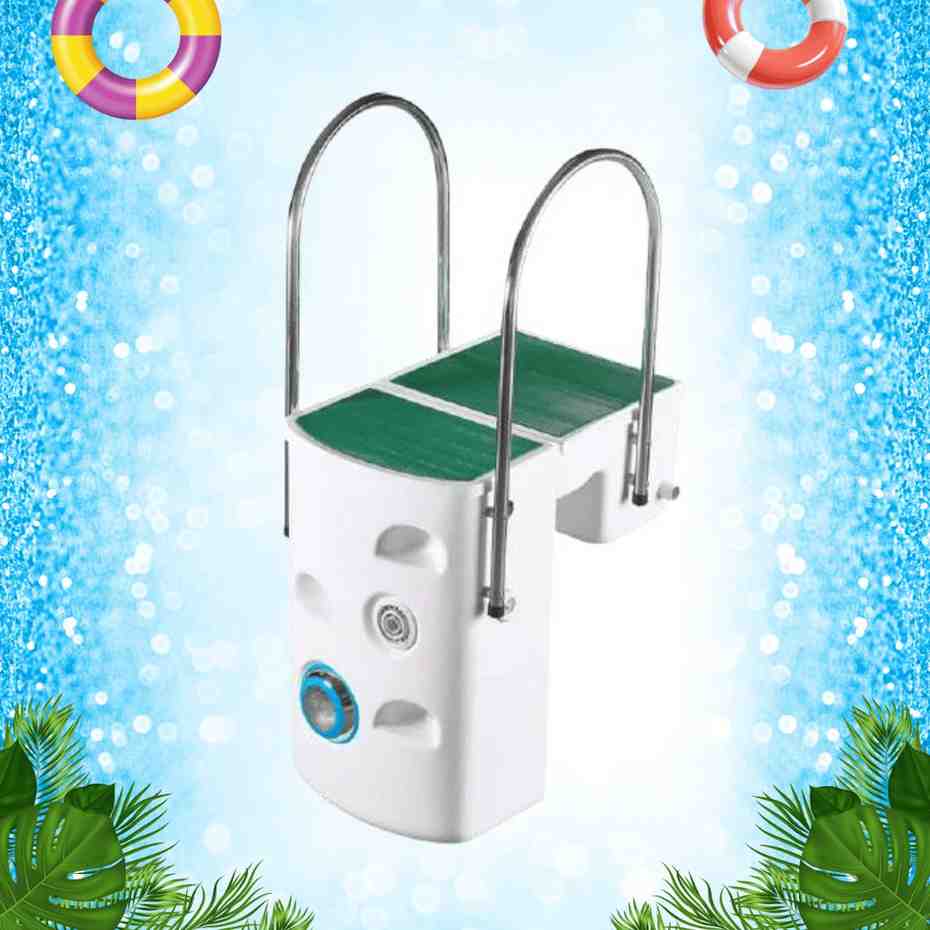

pipeless filter

The enclosure of wall-mounted filter is made of high quality acrylic, so the filter is anti-acid, anti-fading, and easy to clean. Integrated filter installation without room, simple installation, convenient operation, excellent performance,

Advantages

  • No need for pipes or machine room – easy to install and cost-saving
  • Multiple integrated functions: filter, spa, illumination, impact bath, cleaning, ladder
  • Replaces traditional sand filter
  • Acrylic material shell with fiberglass reinforcement – anti-acid and anti-fading
pipeless filter
Technical Characteristics
Parameter Specification
Dimensions 1110 × 670 × 780 mm
Flow Rate 10 m³/h – 15 m³/h
Voltage 220V / 50Hz or 60Hz
Precision of Filtration Bag
Operating Noise ≤ 50 dB
Material Acrylic

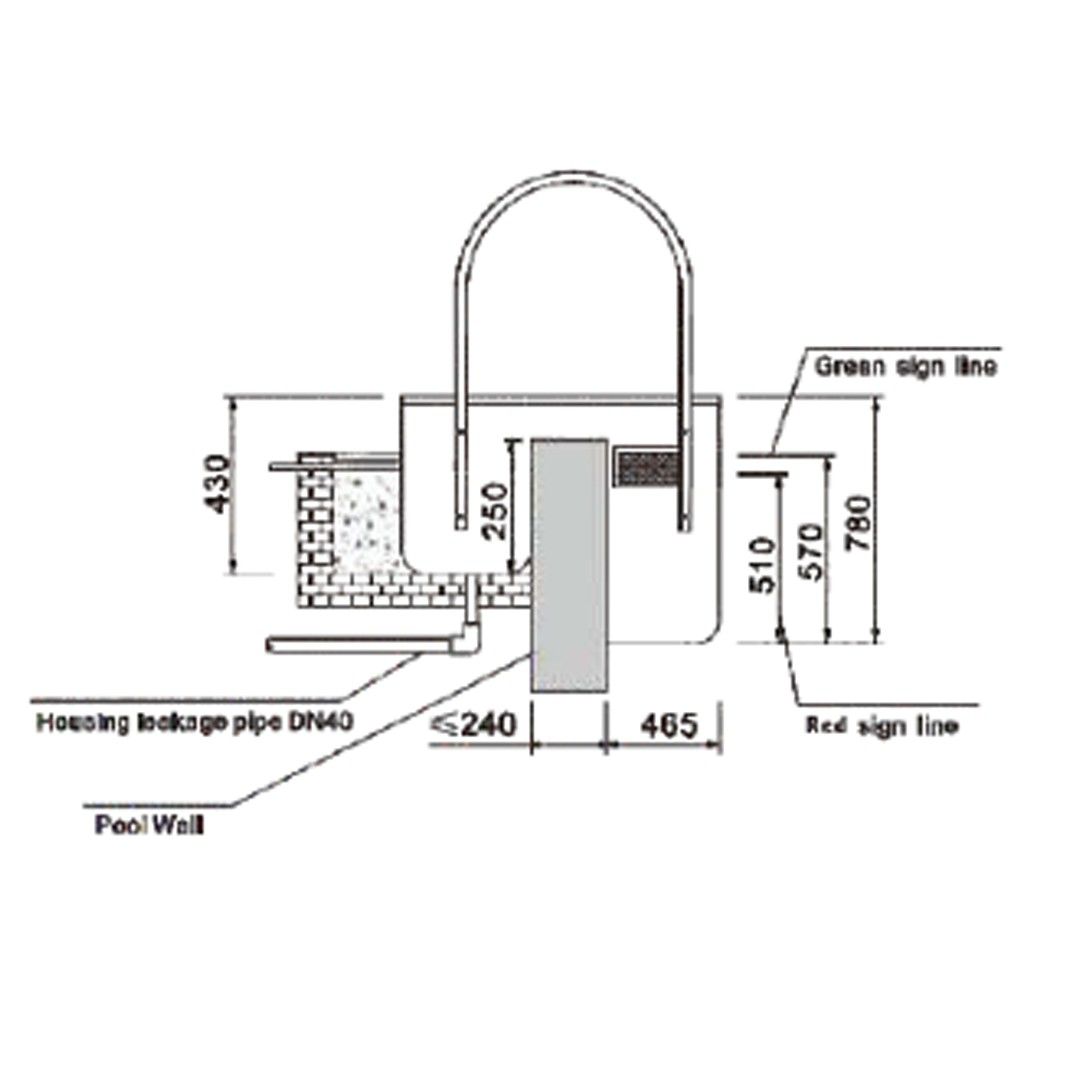

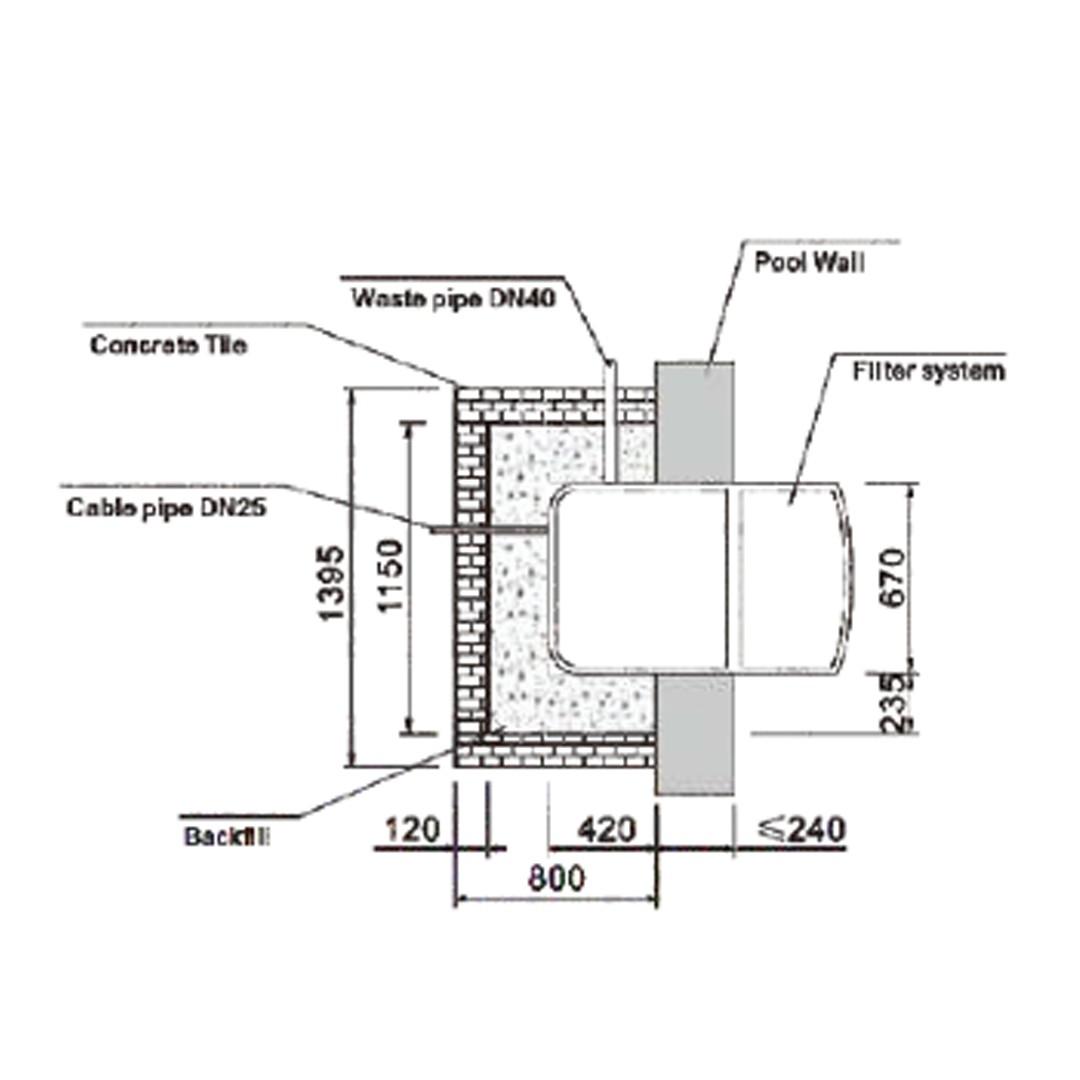

Installation Wall Mounting
pipeless filter
Equipment List
Component Specification
Filtration Pump 1 × 1HP
Filtration Basket with Pump 1 × 1.5HP
Chlorine Feeder 1 pc
Light 1 × LED 12W / 12V
Time Controller 1 pc
Swim Jet 2 pcs
Hand Rail (S.S) 2 pcs
Ozone 1 pc
System
System Quantity
Filtration System 1 pc
Disinfection System 1 pc
Time Control System 1 pc
Circulation System 1 pc
Lighting System 1 pc
