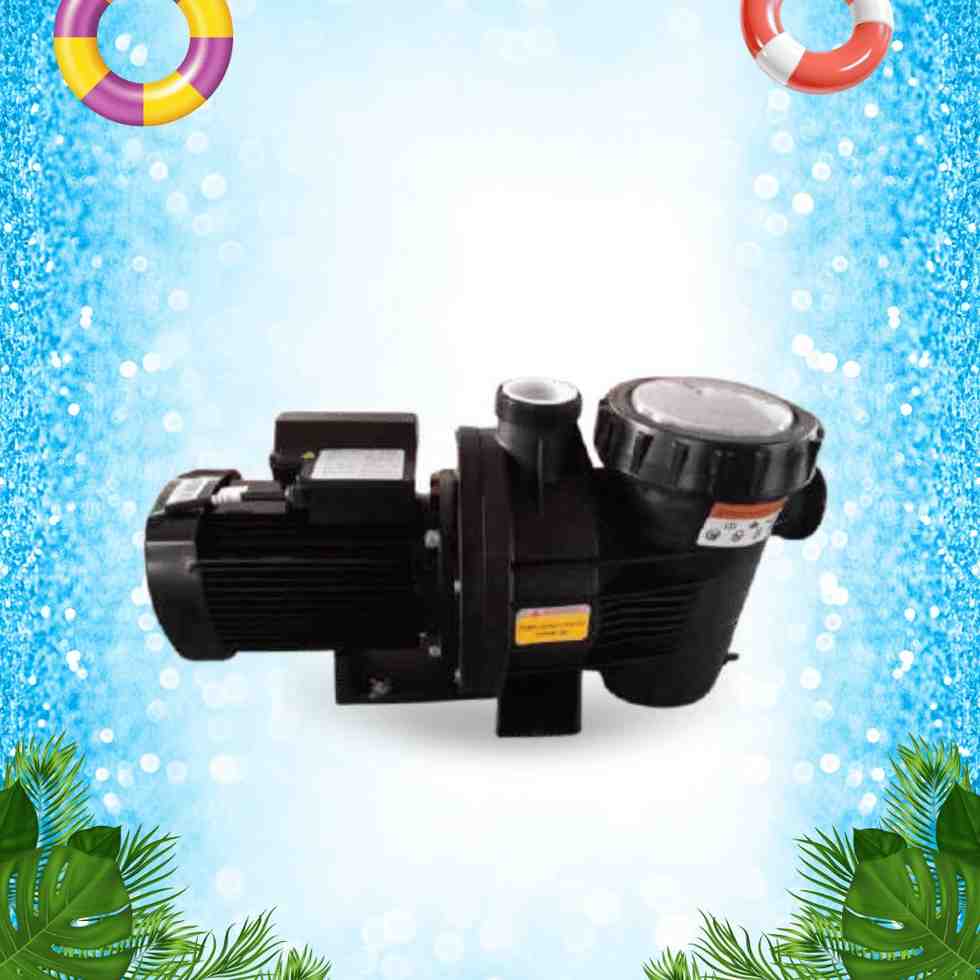

pro series pumps

New Series Pump Heavy Duty Delivers high flow and energy efficiency ultra performance. It is suitable for some commercial swimming pool. 2inch Suction. Ring lock seal design to eliminate suction leaks and to maximize suction efficiency.

Materials

  • Water Inlet and Outlet: Made from engineering plastics for durability and corrosion resistance
  • Mechanical Seal Module Material: Graphite / Silicon Carbide
  • O-Ring: NBR (Nitrile Butadiene Rubber) – offers good resistance to oil and water
  • Motor Casing: Constructed from aluminium for lightweight strength and efficient heat dissipation

Working Condition

  • Work Temperature: 5–50°C
  • Ambient Temperature: < 40°C
  • Working Pressure: 0.3 MPa (Max)
  • Self-Priming Height: 1.5 meters

Motor Specifications

  • Voltage: 230/380V asynchronous two-pole motor
  • Protection Class: IP55
  • Insulation Class: F
  • Operation: Continuous operation capability
  • Safety Features: Built-in overheat protection and short circuit device
pro series pumps

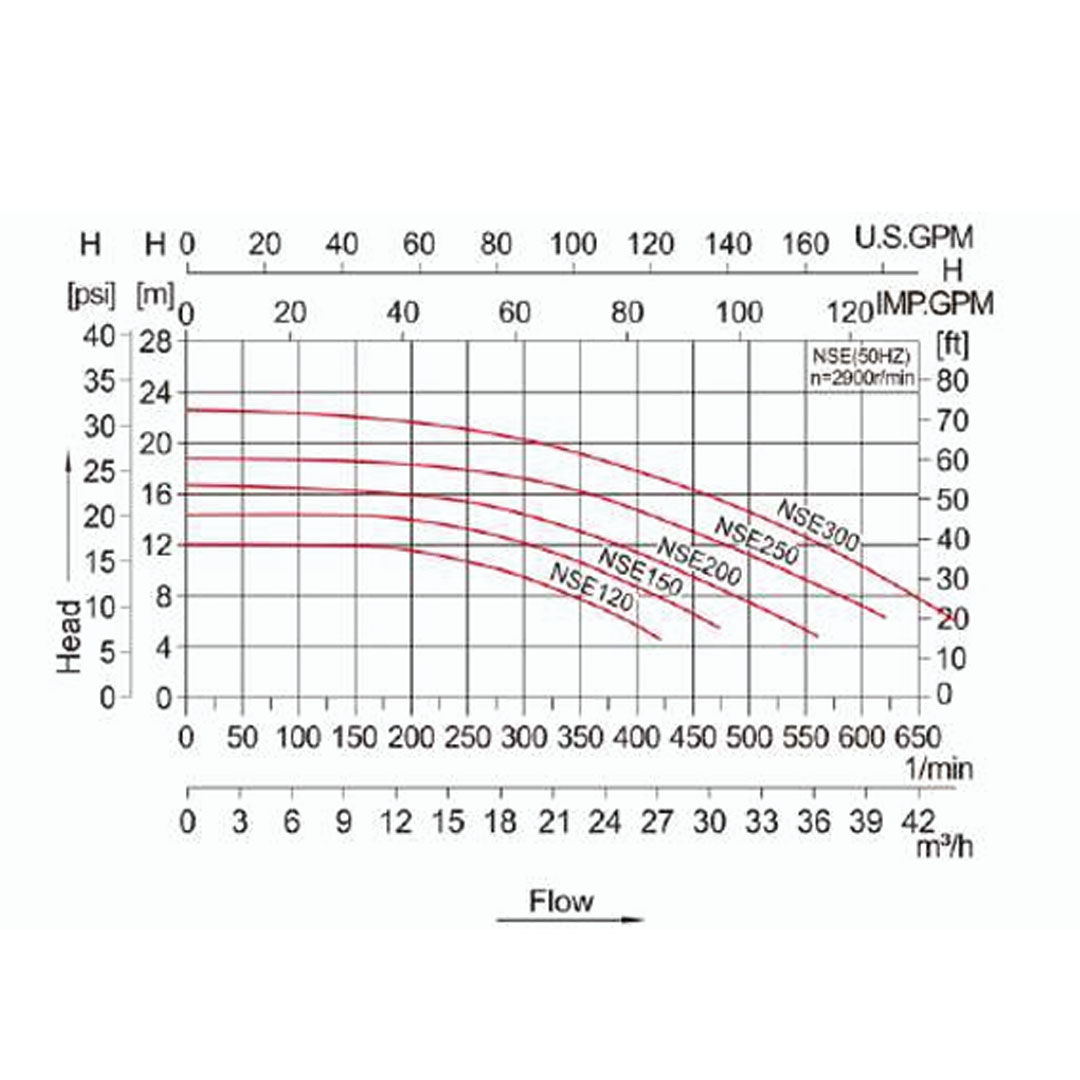

model power Max Head [M] max flow packing size L*W*H[cm] GW [KG] Flow Q [m3/h] 5 10 15 20 25 30 35
[KW] [HP] [m3/h] [l/min] [l/min] 83 167 250 333 417 500 583
NSE120 1.1 1.5 12.0 24.0 400 68*30*38 19.6 head H[m] 12.0 11.9 10.0 7.5
NSE150 1.5 2 14.7 27.0 450 68*30*38 20.6 14.2 14.2 13.1 11.0 6.5
NSE200 1.85 2.5 17.5 32.0 533 68*30*38 23.5 16.6 16.1 15.3 12.5 10.2 60
NSE250 2.2 3 19.0 35.0 583 68*30*38 24.7 18.5 18.1 17.8 16.2 13.6 9.2 5.8
NSE300 3 4 23.0 39.0 650 68*30*38 25.6 22.1 21.9 20.8 18.9 16.5 13.0 8.5
